301 SS Plate from China manufacturer - Tianjin Zhongyuanyuanda Steel Co.,Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 301

Production Capacity: 5000 MT/M

Delivery Date: 7-15 days after accepting t...

Brand:: TISCO/BAOSTEEL

Surface Finish:: 2B,Ba,HL,4K,6K,8K,Mirror,No...

Composition:: High quallity steel

Section:: Flat

Export markets:: All over the world

Means of Transport: Ocean,Land,Air

Packing: Standard export packing on ...

Model No:: 301 SS Plate

Standard:: ASTM, AISI, IS, DIN, EN, UN...

Technique:: Hot rolled&Cold rolled

Certificate:: ISO:2008

Applications:: Mineral Metallurgy Petroleu...

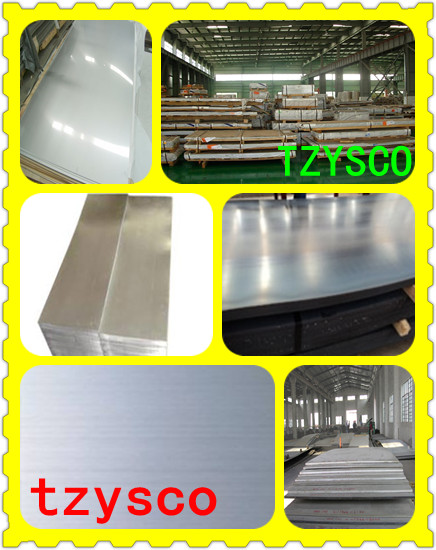

Type 301 SS Plate/Sheet is an austenitic chromium-nickel stainless steel that when cold worked provides high strength and good ductility.

grad-304/316/304L/316L AISI 301 SS Plate/Sheets Supplier

Type 301 SS Plate possesses good resistance to oxidation at temperatures up to 1550°F (840°C). At 1600°F (871°C), Type 301 SS Plate exhibits an oxidation weight gain of 10 mg/cm 2 in 1,000 hours. Therefore,301 SS Plate is not suggested for use at 1600°F or above. As the rate of oxidation is greatly affected by the atmosphere to which the metal is exposed by the heating and cooling cycle, and by the structural design.

[301 SS Plate/Sheets/Steel Sheet/Plate 301-SS 301 Sheets/SS Sheets 301/316 Stainless Steel Sheet/Plates]

Thickness	0.3 mm-80mm
Width	1000mm, 1219mm, 1240mm, 1500mm, 1800mm, 2000mm
Length	2000mm-6000mmor as customer request
Standard	ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Material	201, 202, 301, 321, 304, 304L, 316, 316L, 309S, 310S, 410, 410S, etc
Finish	2B, Ba, HL, 4K, 6K, 8K, Mirror, No.1, No.2, No.4, No.5, Wire Drawing
Brand name	TISCO, BG, ZPSS, YUSCO, JISCO, BXIN, KSK, KRUPP
Packaging	Standard export sea-worthy packing
Technique	HR / CR
Delivery time	7-15 days
Supply ability	5000 metric tons/ month
Payment terms	L/C, T/T
Application range	Foodstuff, gas, metallurgy, biology, electron, chemical, petroleum, boiler, nuclear energy Medical equipment, fertilizer, etc.
Note	We can produce other standard as the customers' requirement

[SPECIFICATIONS]:

AMS 5517 301 Stainless Steel Sheet and Strip Cold Rolled 125ksi MIL-S-5059 1/4 HD

AMS 5518 301 Stainless Steel Sheet and Strip Cold Rolled 150ksi MIL-S-5059 1/2 HD

AMS 5519 301 Stainless Steel Sheet and Strip Cold Rolled 185ksi MIL-S-5059 FULL HD

AMS 5902 301 Stainless Steel Sheet and Strip Cold Rolled 175ksi MIL-S-5059 3/4 HD

[TYPICAL MECHANICAL PROPERTIES]:

Condition	Tensile 0.2% Strength,Min.		Yield Strength,Min.		Elong.In 2''(50mm)%,Min.
Condition	Ksi	MPa	Ksi	MPa	Elong.In 2''(50mm)%,Min.
Annealed	75	515	30	205	40
1/4 Hard	125	862	75	517	25
1/2 Hard	150	1034	110	758	18
3/4 Hard	175	1207	125	931	12
Full Hard	185	1276	140	965	9

[TYPICAL MECHANICAL PROPERTIES]:

Condition	Tensile 0.2% Strength,Min.		Yield Strength,Min.		Elong.In 2''(50mm)%,Min.
Condition	Ksi	MPa	Ksi	MPa	Elong.In 2''(50mm)%,Min.
Annealed	75	515	30	205	40
1/4 Hard	125	862	75	517	25
1/2 Hard	150	1034	110	758	18
3/4 Hard	175	1207	125	931	12
Full Hard	185	1276	140	965	9
